STOAD / CABLE HANDLE

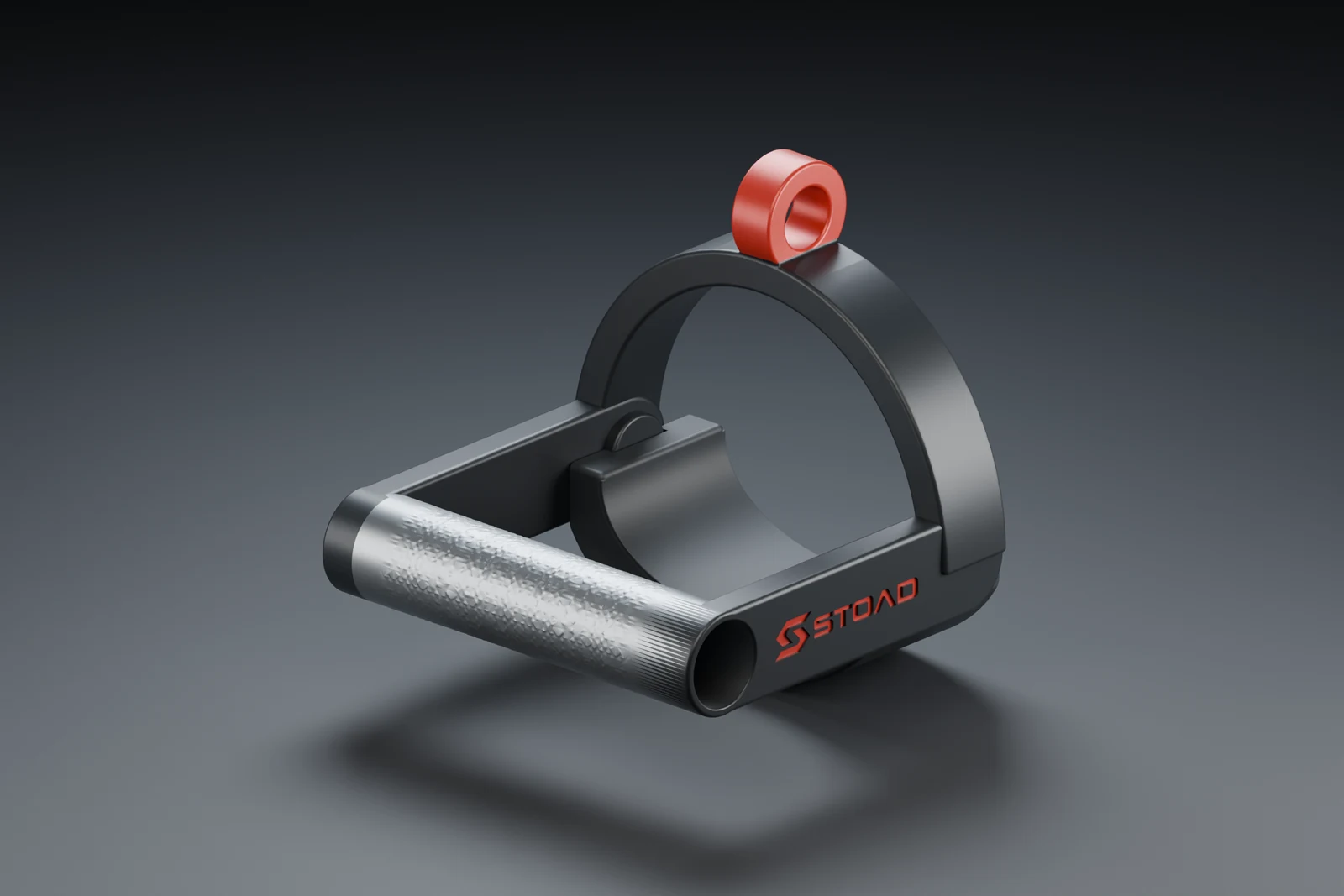

Steel. A black frame. Red details. A compact cable handle with a shaped support for lateral raises.
V15 · DIGITAL PROTOTYPE · NOT FOR SALE

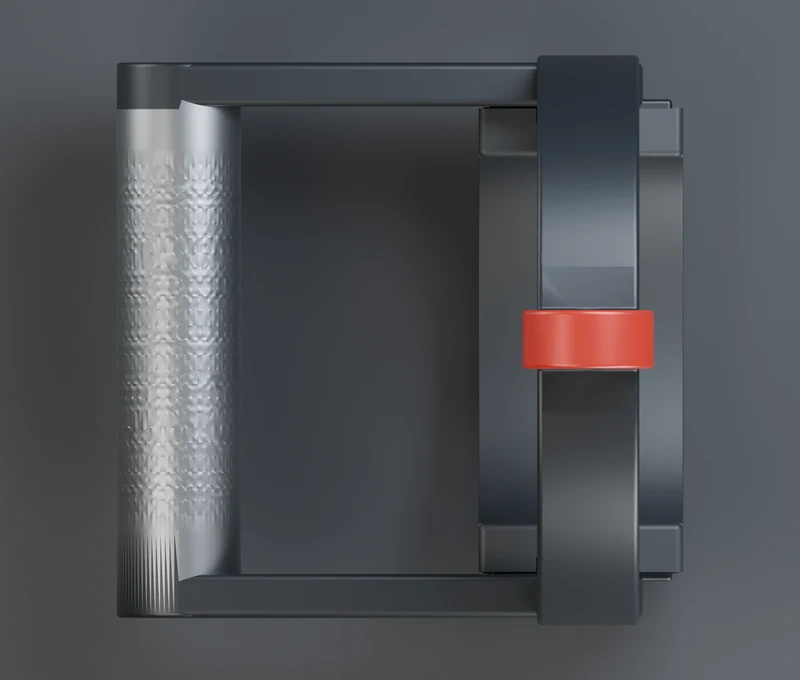

NINE VIEWS. ONE MODEL.
From the full form to the fine detail. Nine black-and-red views rendered from the same CAD model.
01 / 09 Overview

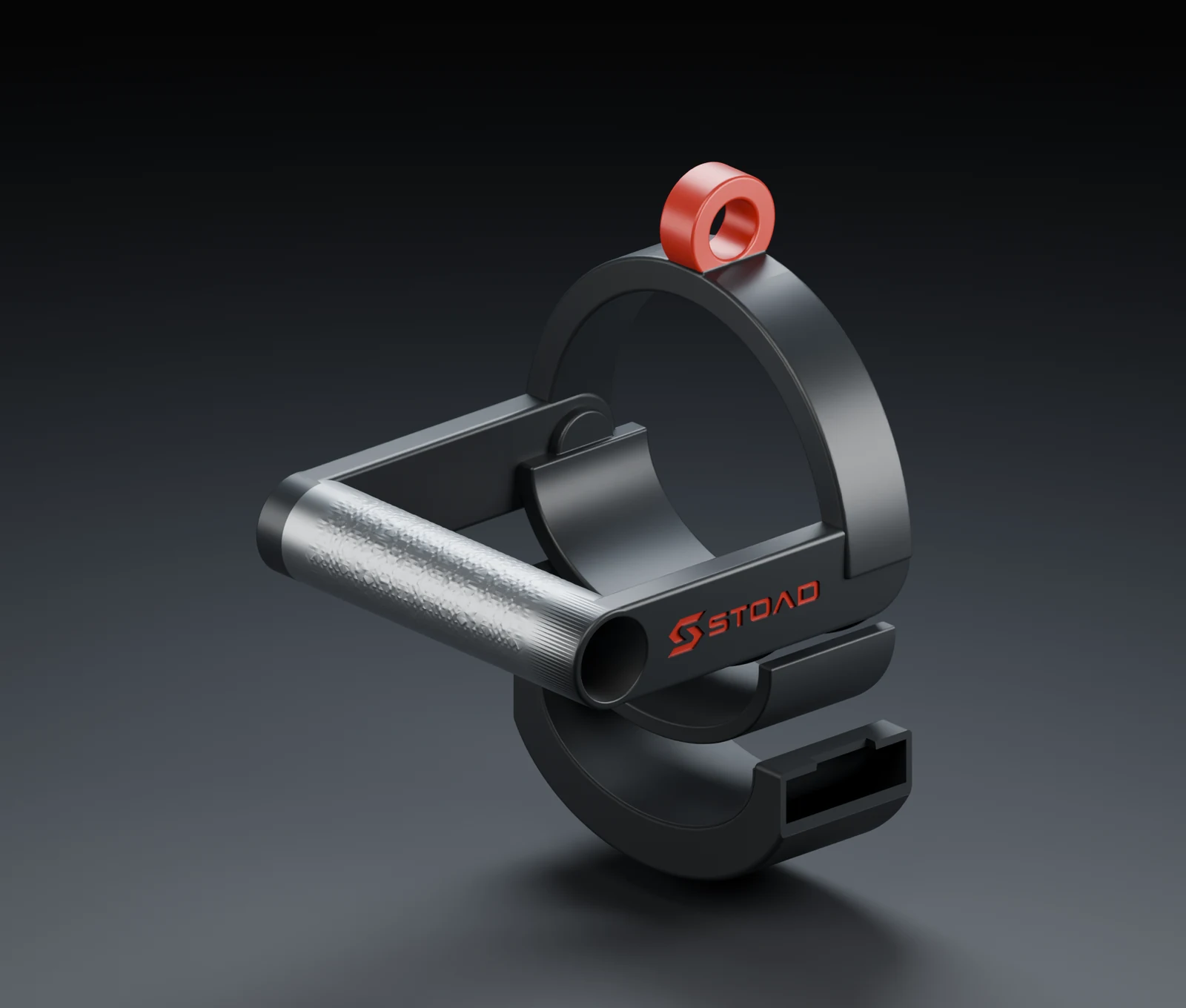

The exploded view separates the cover and foam to explain the construction. They are separate from the steel print.
01 / FORM AND FUNCTION

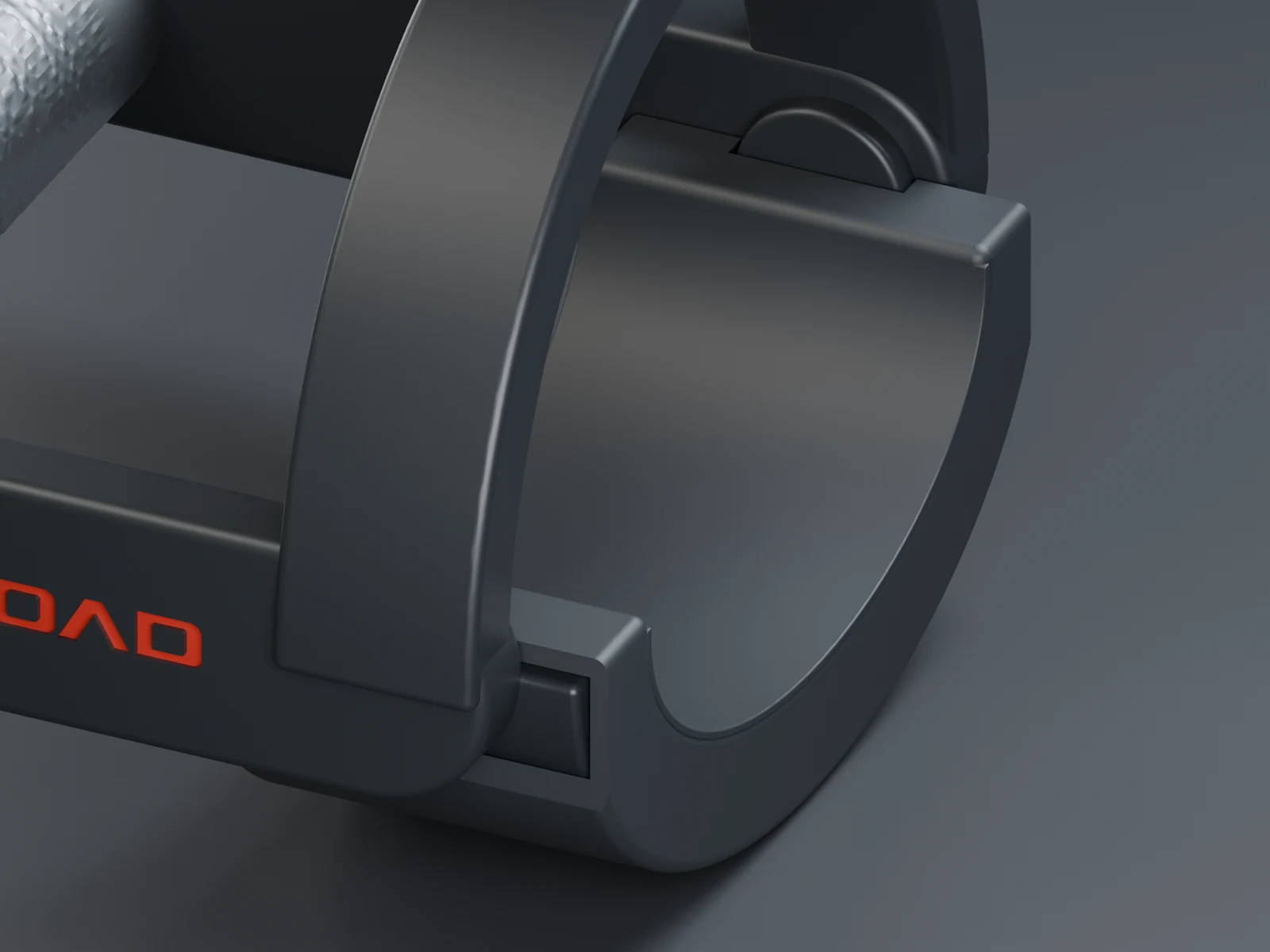

A curved, padded support is shaped to contact the hand. The aim is an alternative way to transfer cable load during lateral raises. Fit, contact pressure and any wrist-relief effect need to be evaluated on a physical prototype.
02 / FORM AND FUNCTION

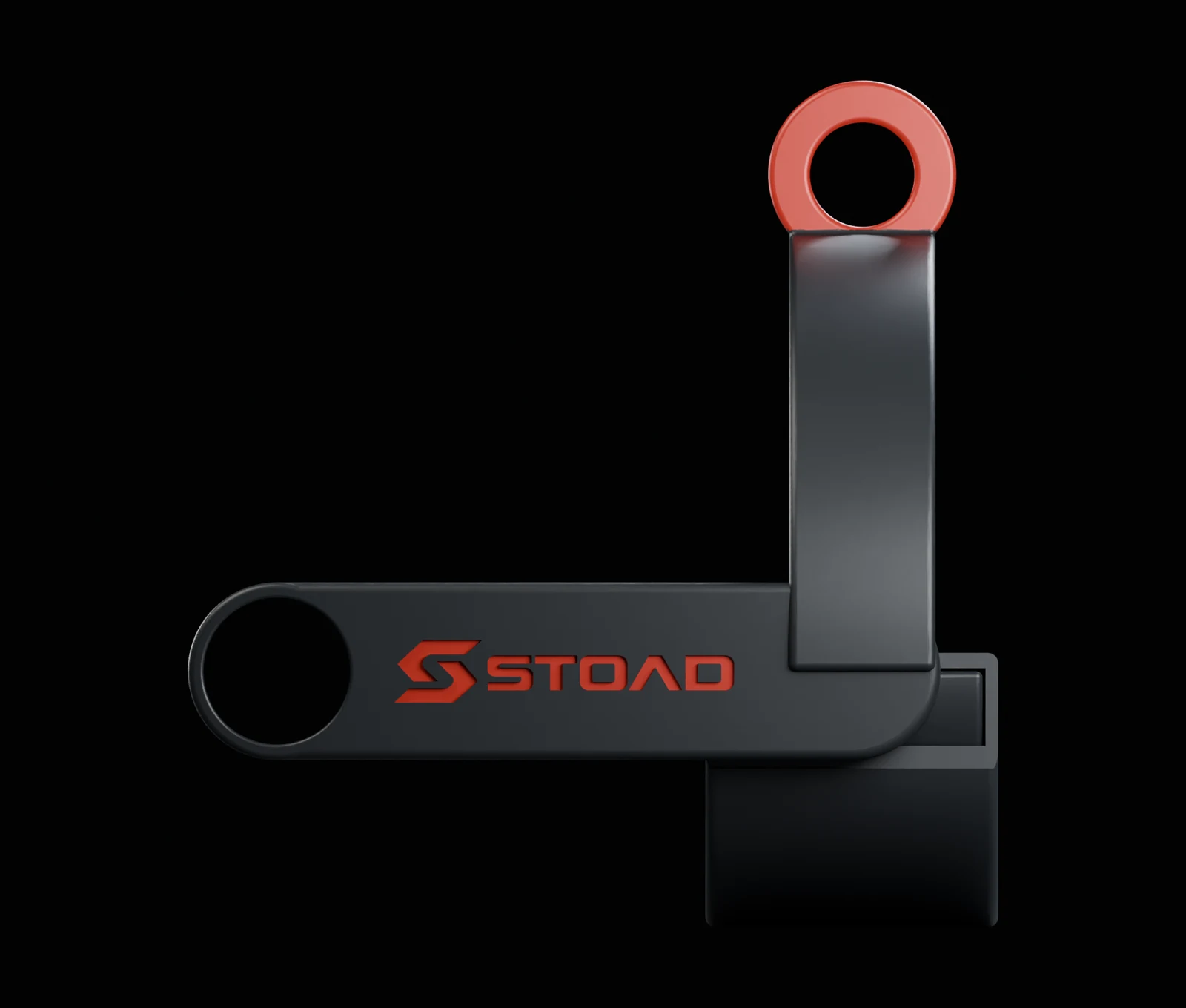

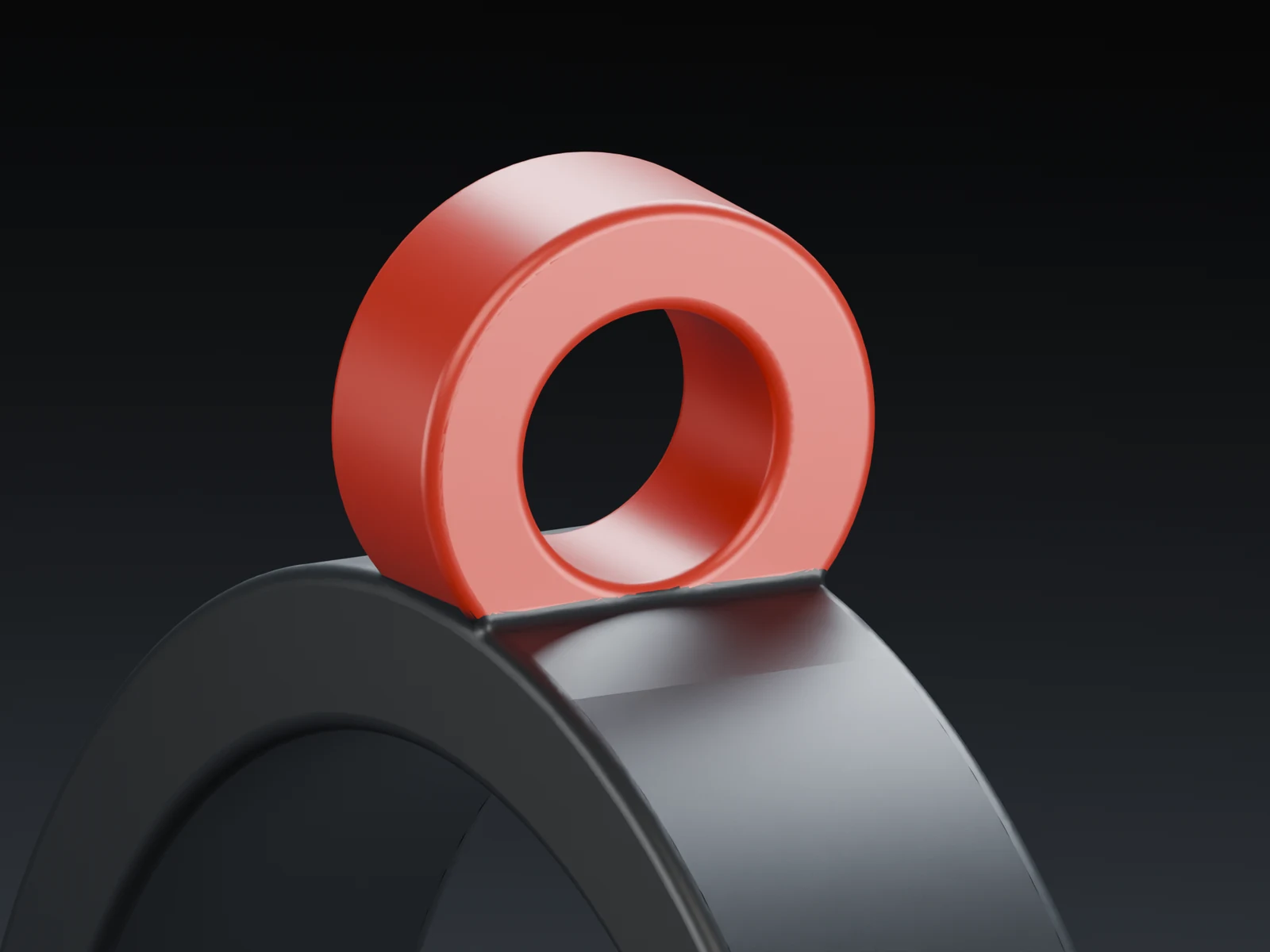

The tall neck is gone. The cable eye merges directly into the arch, with rounded transitions and an open Ø20 mm hole. V15 projects 13 mm less than V14. Clearance against the body and a suitable carabiner still need testing throughout the movement.
03 / FORM AND FUNCTION

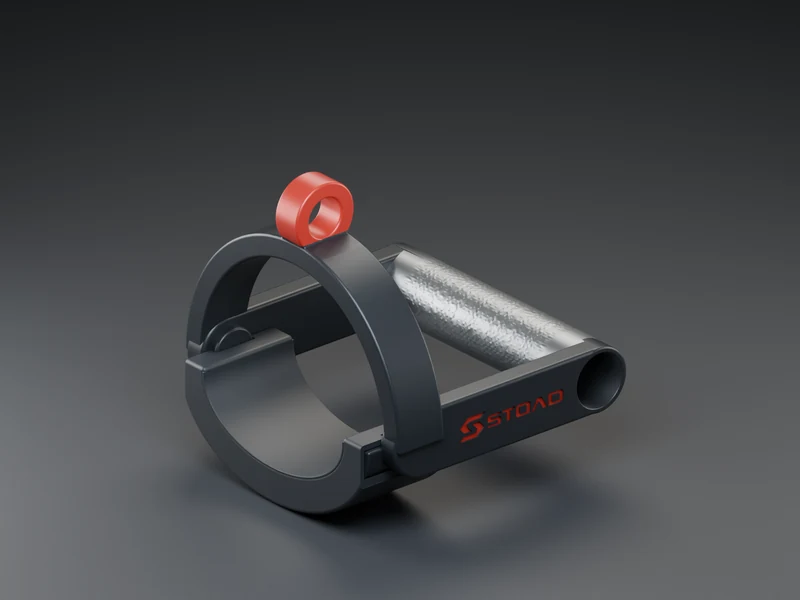

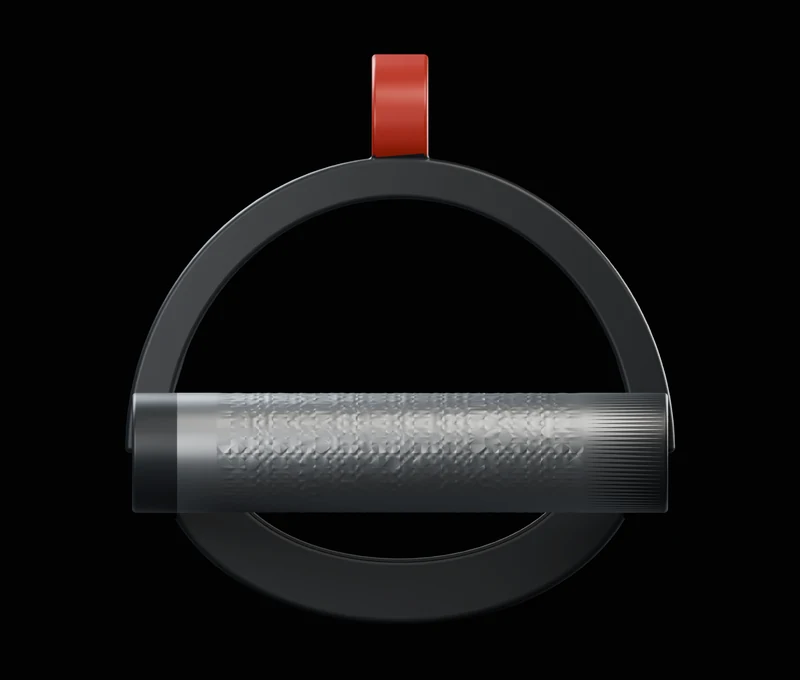

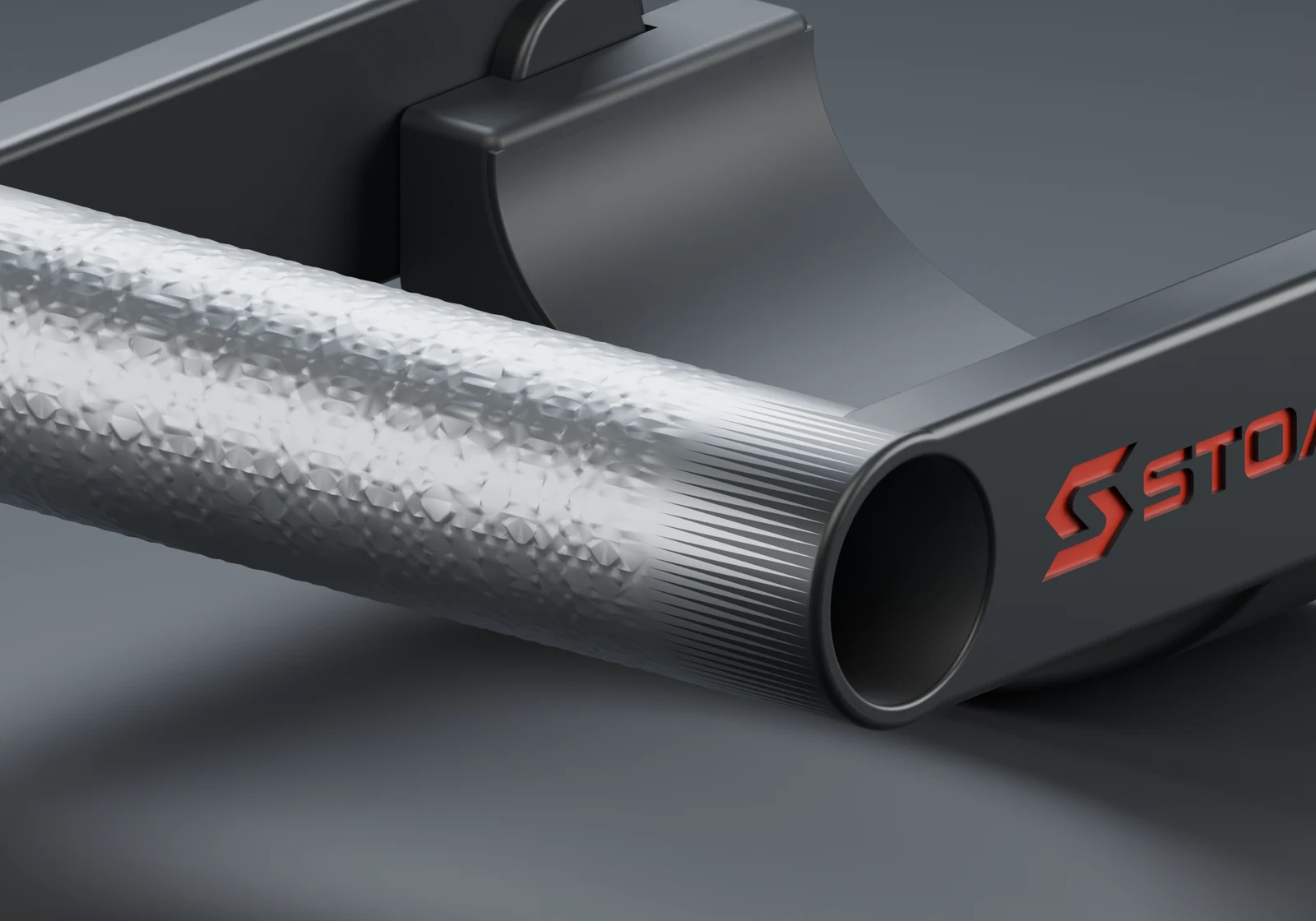

A Ø34 mm grip with shallow surface texture and a 128 mm grip length. S + STOAD is recessed into both side arms. The straight Ø28 mm bore is open at both ends for cleaning access and finishing.
04 / FORM AND FUNCTION
The metal body is one connected part without screws. The pad is a separate foam-and-cover concept. Two low, rounded locators meet pockets in the cover. Materials, installation, cleaning and actual retention force remain to be selected and tested.
YOUR ANGLE
Rotate the model. See the metal body with or without the pad. Load 3D when you want to explore.
Drag to rotate, scroll to zoom. On mobile: drag inside the viewer to rotate; scroll outside it. Illustrated finish, not a final material specification.
FROM MODEL TO SETTING

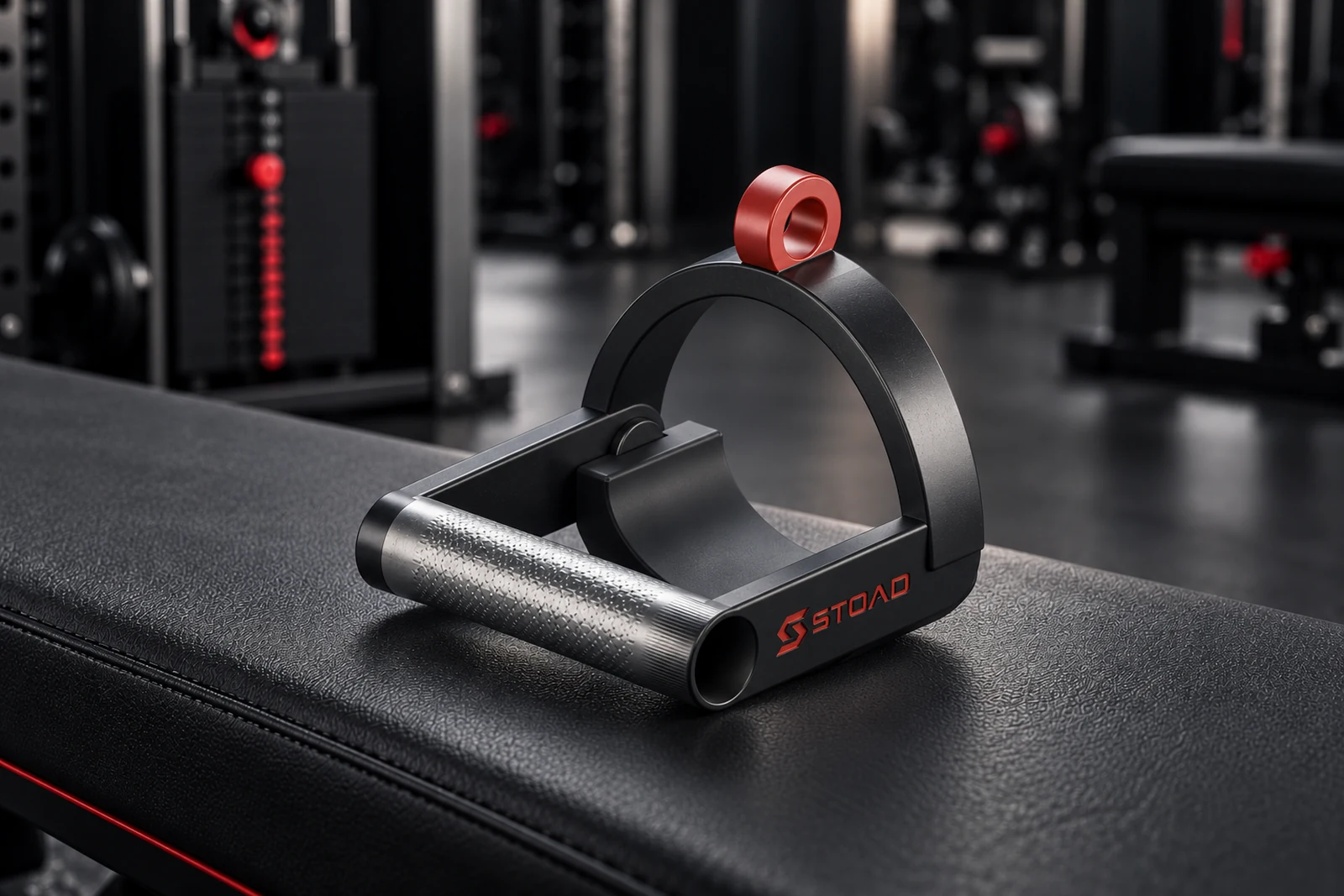

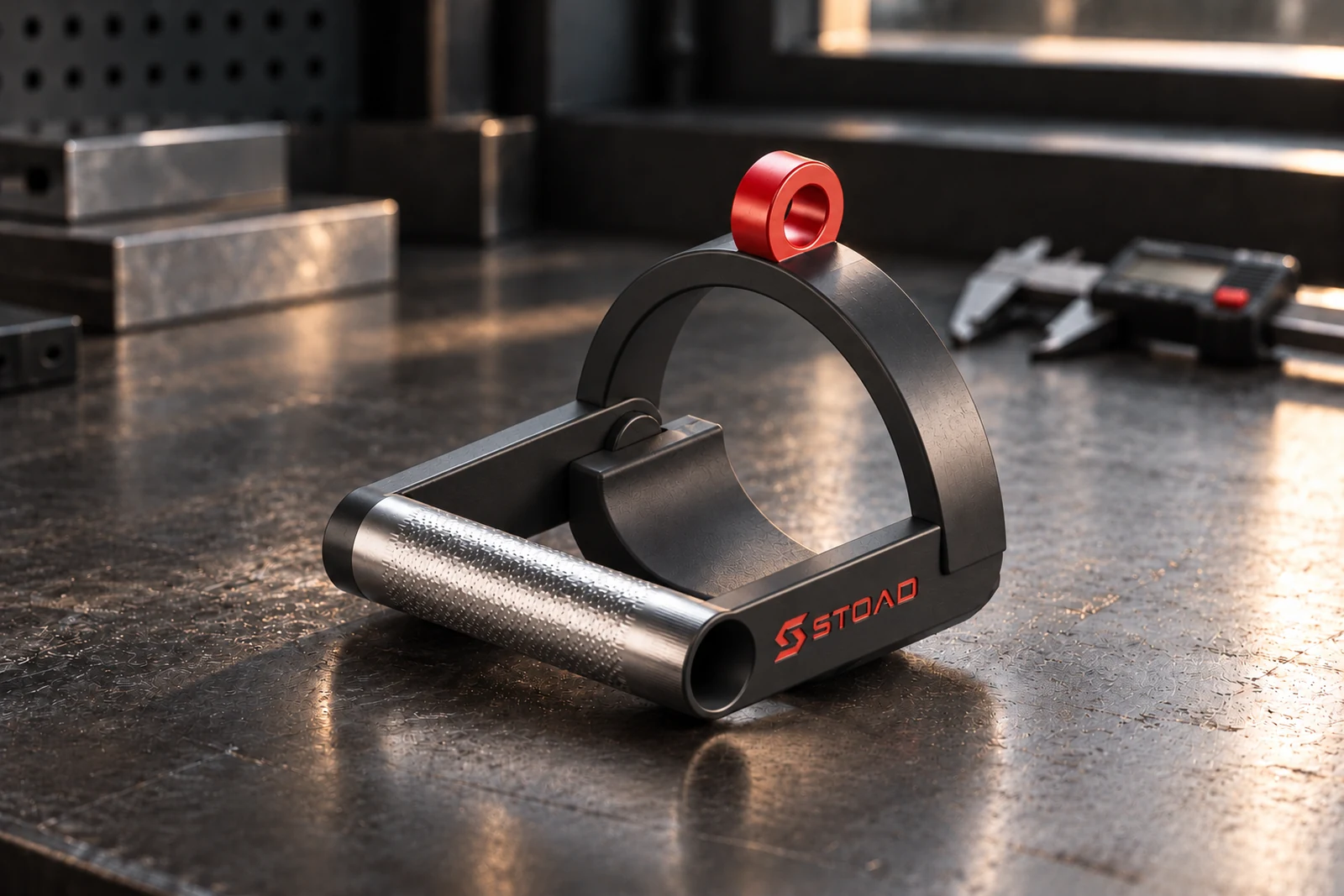

A small handle with a clear idea: one metal body, a padded contact surface and a compact cable connection. These environment images explore how the concept could look beyond the studio.
V15 / NOMINAL CAD DIMENSIONS
These dimensions describe the model. Final material, tolerances and surface finish will be agreed with the workshop.
¹ Compared with V14: projection above the arch reduced from 42 to 29 mm. ² Calculated from metal volume at assumed steel density 7.8 g/cm³. No approved working load has been established.
NEXT STEPS
The geometry has been checked digitally. The physical part still needs to be manufactured and tested. Steel grade, printer, finishing, skin contact, pad retention, body clearance and strength must be established before training use. V15 is not released for sale.
